DreamosatX Signal E² Plugin 2.0
DreamosatX Signal, developed for Enigma2-based satellite receivers, is an advanced satellite signal analysis and motor control plugin that goes beyond standard signal displays.
The plugin is specifically designed for users who install satellite systems, those who use motorized dishes, and those who want to analyze signal quality in detail.
Thanks to its advanced analysis tools, antenna alignment, transponder control, and signal optimization can be performed with much greater precision.
Plugin Features

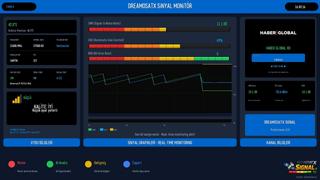

Advanced Signal Analysis
DreamosatX Signal displays much more detailed signal data than Enigma2's standard signal screen.
Key values displayed:
-SNR (Signal to Noise Ratio)
-AGC (Automatic Gain Control)
-BER (Bit Error Rate)
-Lock status
-Active transponder information
-Frequency and polarization
This allows users to adjust their antenna settings with millimeter precision.

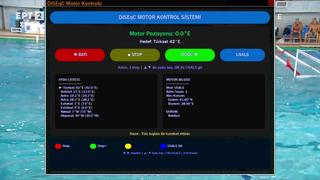

Motor Control Support
The plugin includes an advanced motor control screen.
Supported systems:
-DiSEqC 1.2
-USALS
Users can:
-Move the antenna east/west

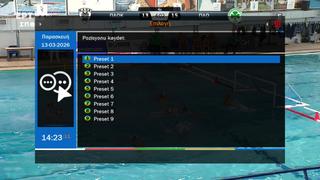

-Save satellite positions
-Adjust motor positions
-Perform manual antenna adjustments
It is very useful for users with motorized dishes.

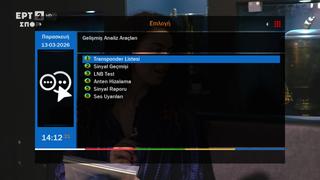

Transponder Signal Tracking
Transponder signal information can be monitored in detail via the plugin.
Additionally:
-Active frequencies can be displayed
-Signal quality can be compared
-Strong and weak frequencies on the satellite can be analyzed
This feature is particularly ideal for satellite frequency testing and antenna optimization.

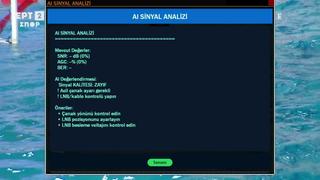

Advanced Analysis Module
The analysis module within the plugin interprets signal data to provide users with clearer information.
This allows:
-Signal quality to be quickly assessed
-Antenna settings to be adjusted more efficiently
-Setup time to be reduced
Compatibility
The plugin is compatible with the following systems:
Dreambox
Vu+
Octagon
Zgemma
Gigablue
All Enigma2-based satellite receivers
Works seamlessly with DreamOS and most Enigma2 images.
Thanks @drenalinnrw
